Get More-Natural Adjustments with the Illustrator "Reshape" Tool

A hidden gem in my opinion, Illustrator's “Reshape” tool can come in very handy in a variety of situations. In a nutshell, the Reshape tool allows you to drag a single point on a path and it tries to retain the overall shape of the entire path, while you only move the one anchor point. What? I'll explain below.

The Illustrator Reshape Tool

1: Direct Select Tool Adjustment

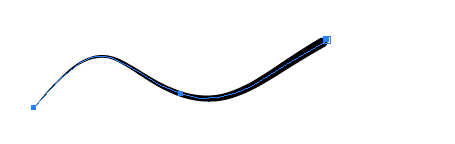

Start off with a simple path like below. I used the pencil tool to make a simple curved line, and applied a brush stroke. I'll start by showing you an adjustment with the Direct Select tool (white arrow) as a contrast/comparison.

Using the direct selection tool

Now lets say you want to adjust this shape, and you use the Direct Select tool (white arrow) and move the far right point where you want it like this:

Adjusting the shape

And this is what you get. Ok, but you still might have to manually adjust the rest of the points to get what you're looking for.

Using the direct select tool to adjust the shape

2: Reshape Tool Adjustment

Start with the same simple path (or a new one).

Reshape tool adjustment

Now select your shape with the Selection tool (black arrow), and then select the Reshape tool.

Important: You need to have all points in your shape selected before you move the single point. If you only select a single anchor point before you use the Reshape tool, it will only adjust the path up to the next non-selected point (like the example above)

The Illustrator Reshape Tool

Ok, with all points on your path highlighted, move the far-right point with the Reshape tool, and you'll notice a more natural adjustment.

Moving the shape

In my opinion, this is a much more pleasing result:

The shape after it's been moved

One More Thing:

If you hold Option (Alt PC) while you drag with the Reshape tool, you can easily make copies of your shape that might prove to be useful. (almost like a manual blend tool).

Making copies of the shape
