CSS for Fading Corners
Due to the responses to “Free Fading Corner Images”, I will cover how to use a fading corner with CSS.
Simple Method:
I’ve found that the simplest way to do this by using a single div with the fading corner as a background image that doesn’t repeat. Make sure in your css that you set the background image to no-repeat, and place it in the top left. I also put a 20px left padding on the content in the div.
The HTML:
CSS for Fading Corners
Method 1: A single div with 1 background image.
The CSS:
Important: If you copy and paste this code, you have to make sure your image URL is correct.
h1 {
font-family: "Times New Roman", Times, serif;
font-size: large;
color: #7C8D37;
padding-bottom: 5px;
padding-left: 20px;
padding-top: 15px;
}
.wrapper {
height: 400px;
width: 440px;
background-image: url(images/fading_corner_2.jpg);
background-position: left top;
background-repeat: no-repeat;
}
p {
font-family: "Times New Roman", Times, serif;
font-size: small;
color: #616161;
width: 390px;
padding-left: 20px;
}
View the Result (Live Example)
More complex, but flexible width and height:

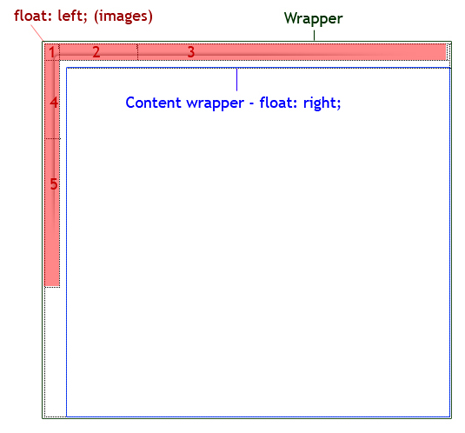

1. Slice Your Image into 5 Parts.
In order to keep your file size to a minimum, you can slice your fading corner into 5 pieces and also give yourself a lot more flexibility with your layout. It gives you the ability to use very small background images and repeat them, instead of loading one large image behind the entire column. It’s not quite as simple, but it is a much better approach if you are at all interested in slimming down your load times.
I know it sucks to have to deal with 5 images instead of 1, but lets take a look at file sizes. The original .jpg I provided in the previous post has a file size of approximately 40K. The total file size of all 5 images after they are sliced is 2.4K.
The Reason for Slicing:

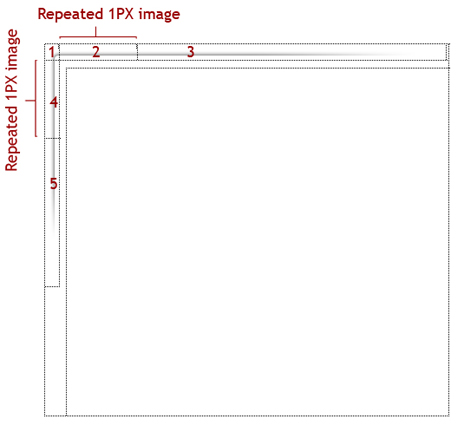

By slicing your fading corner into parts, you give yourself unlimited flexibility for any layout. You can repeat the darkest part of the shadow (simple CSS background repeat) to adjust for any width or height in your layout. Here’s a visualization.
2. The HTML:
This is the HTML I used for the example (the download). Once again, let me note that this is only one example of how to do this. There are probably at least a dozen different approaches. Don’t be afraid of trying your own HTML/CSS combination.
CSS for Fading Corners
Keep your file size down by slicing up your image. This method also gives you flexibility with your width and height because you can repeat the darkest part of the shadow as far as you need to.
3. The CSS:
Important: If you copy and paste this code, you have to make sure your image URL’s are correct.
#wrapper {
height: 400px;
width: 465px;
}
.corner {
padding: 0px;
float: left;
height: 12px;
width: 16px;
background-image: url(../images/fading_corner_2_01.gif);
background-repeat: no-repeat;
background-position: right bottom;
margin: 0px;
}
.leftShdwRepeat {
background-image: url(../images/fading_corner_2_04.gif);
background-repeat: repeat-y;
background-position: right top;
margin: 0px;
padding: 0px;
float: left;
height: 90px;
width: 16px;
}
h1 {
font-family: "Times New Roman", Times, serif;
font-size: large;
color: #7C8D37;
border-bottom-width: 1px;
border-bottom-style: dotted;
border-bottom-color: #999999;
padding-bottom: 5px;
width: 400px;
}
.contentWrapper {
float: right;
height: 400px;
width: 440px;
}
p {
font-family: "Times New Roman", Times, serif;
font-size: small;
color: #616161;
width: 390px;
}
.leftShdwFade {
background-image: url(../images/fading_corner_2_07.gif);
background-repeat: no-repeat;
background-position: right top;
float: left;
height: 171px;
width: 16px;
margin: 0px;
padding: 0px;
}
.topShdwRepeat {
margin: 0px;
padding: 0px;
float: left;
height: 12px;
width: 90px;
background-image: url(../images/fading_corner_2_02.gif);
background-repeat: repeat-x;
background-position: left bottom;
}
.topShdwFade {
background-image: url(../images/fading_corner_2_03.gif);
background-repeat: no-repeat;
background-position: left bottom;
margin: 0px;
padding: 0px;
float: left;
height: 12px;
width: 356px;
}
View the Result: (Live Example:)
Thanks for all the feedback on my previous post. I hope this answers some of your questions. And let me say again that this is by no means the only way to achieve a fading corner. There are many more ways to do this. Does this example work for your layout?
